High Power 700W 9050 UV LED Curing System with Water Cooled for Inkjet Printing

Product Categories

UV LED SMD [32]
UV LED Chip [34]
UV LED Module [134]
UV LED Curing Lamp [57]
UV LED Curing Systems [64]
UV LED Curing Equipment [16]
UV LED Lamp For Printing Machine [22]
UV Curing Systems For Printing [23]
UV Light Module [124]
UV Ink Curing Lamp [20]
UV LED Curing Light [15]
COB UV LED [34]
UV LED Flashlight [17]

shenzhen yuanming co., ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

High Power 700W 9050 UV LED Curing System with Water Cooled for Inkjet Printing

Brand Name : YM

Model Number : 700W 9050 UV LED Curing System

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : 700W 9050 UV LED Curing System

Power : 700W

Module Size : 123mm*81mm

Luminous Size : 90mm*50mm

Type : High Power LED

Wavelength : 365NM/385NM/395NM/405NM

Viewing angle(°) : 60-120

Application : Printing,UV Curing,Coating

Control Mode : Manual/Automatic

Cooling Scheme : Water cooling

Curing Time : 2-3s

Driven Type : Electric

Light Source : UV LED

Contact Now

UV Curing System

The UV Curing System can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV Curing System beads are consumables. Please use the lamp beads reasonably to extend the service life,

so as not to burn the lamp beads when the current and voltage are too high.
UV Curing System is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.

We can provide you with customized products.

Item	700W 9050 UV LED Curing System
Power	700W
Color	UV
Number of lamp beads	264 pcs
Diode type	3535 5smd
Lens Material of Diode	quartz
View Angle of the Lens	60 degree
Module size	123mm*81mm
Luminous Size	90mm*50mm
Wavelength	365nm,385nm,395nm,405nm
Cooling Mode	Water Cooling
Material	Aluminum
Chip Material	LG,Seoul,Epileds
Encapsulation process	1.5mm High temperature quartz lens package
Application	Apply in various UV glue, ink, paint, silk screen, inkjet, offset printing.
Place of Origin	Shenzhen, Guangdong, China

FAQ

Q1. How can I place an order?
A: 1. Provide us your requirements.
2. Our company will draft an quotation and provide you with our best suggestions.
3. Our company will issue an invoice and you will confirm the invoice.
4.Make the payment after confirming the Invoice.
5.The goods will be shipped as soon as possible after payment.
Q2. Can I order sample products?
A:Yes, you can order the sample product.

Q3. What's the wavelength of the UV Curing System?
A: The wavelength of UV Curing System usually are 365-405nm, the wavelength for inkjet printer is 395nm,

385/395nm for printing machine, 365nm for UV glue.

Please pay special attention
To make sure that the products works at there best and to reduce any errors of usage please pay attention to the following tips.
(1) During operation, Users handing the UV Curing System should take precautions to prevent electric shocks and beware of the shock hazards.

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.

High Power 700W 9050 UV LED Curing System with Water Cooled for Inkjet Printing

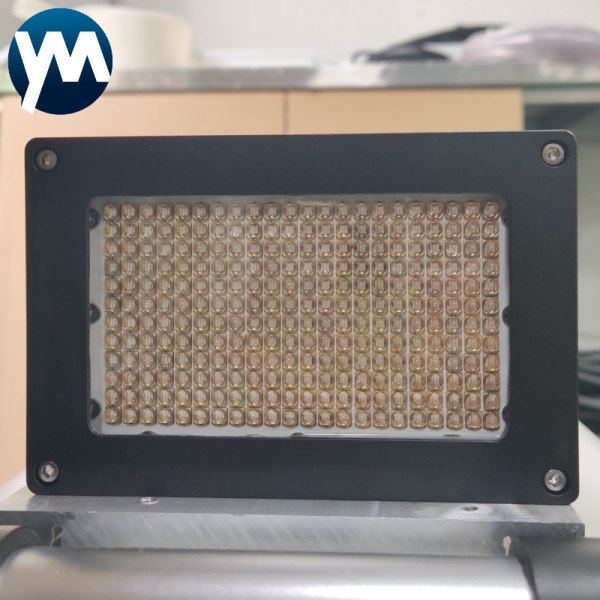

High Power 700W 9050 UV LED Curing System with Water Cooled for Inkjet Printing Images
