90W 3D Printing High Power UV LED Quartz Lens 385nm 395nm

  • 1
  • 2
  • 3

Brand Name : YM

Model Number : UV Light Module 4331

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : UV Light Module 4331

Power : 90W

Module Size : 43mm*31mm*1.5mm

Luminous Size : 39mm*12mm

Lens Material of Diode : Silica gel or quartz

Current : 1.5-2.1A

Contact Now

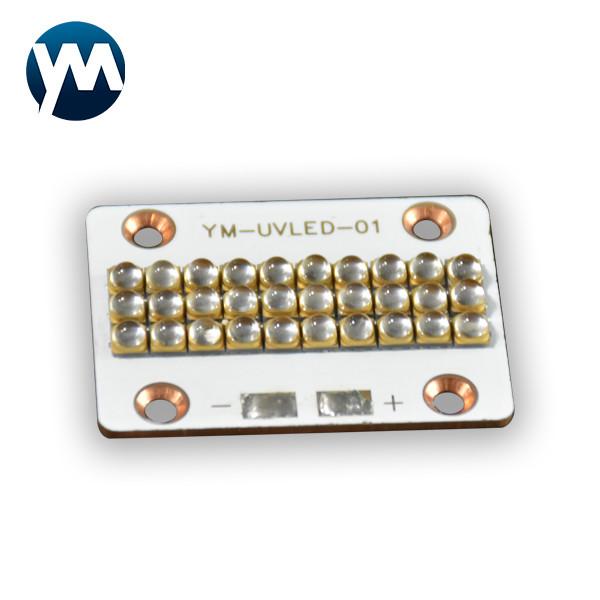

90W UV Light Module 3D Printing High Power UV LED Quartz Lens 385nm 395nm

Description of UV Light Module:
The UV Light module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
Product Name UV Light Module 4331
Power 90W
Color UV
Number of lamp beads 30 pcs
Diode type 3535 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 60, 120 degree
Module size 43mm*31mm*1.5mm
Luminous Size 39mm*12mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 34-38V
Current 1.5-2.1A
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package
Module material Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

Why Choose Us

1. Well-known chip material

2. 99.99% gold wire bonding

3. 2 years warranty

4. Over 10 years work experience technical service team


Matters needing attention

Warm reminder, in order to make our products play the best performance, and to reduce

the failure of customers when using the product, please pay attention to:
1) During the entire use process, all people who are in direct contact with UVLEDs should

take measures to prevent and eliminate static electricity, and do not directly touch UV LEDs with their hands.
2) Pay attention to the welding time and temperature when welding, and distinguish between positive and negative polarity.

Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) The welding temperature should be lower than 260 degrees Celsius.
3) Reflow soldering is only allowed once.
4) When welding, distinguish positive and negative polarity, and avoid lens to avoid damage to lens.

90W 3D Printing High Power UV LED Quartz Lens 385nm 395nm90W 3D Printing High Power UV LED Quartz Lens 385nm 395nm90W 3D Printing High Power UV LED Quartz Lens 385nm 395nm

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
