Quartz Lens Lamp Beads 20W UV Curing Light 365nm 385nm 395nm 405nm

  • 1
  • 2
  • 3

Brand Name : YM

Model Number : UV Light Module 4040

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Product Name : UV Light Module 4040

Power : 20W

Module Size : 40mm*40mm*2.0mm

Luminous Size : 14mm*6.5mm

Voltage : 13-15V

Current : 1-1.5A

Contact Now

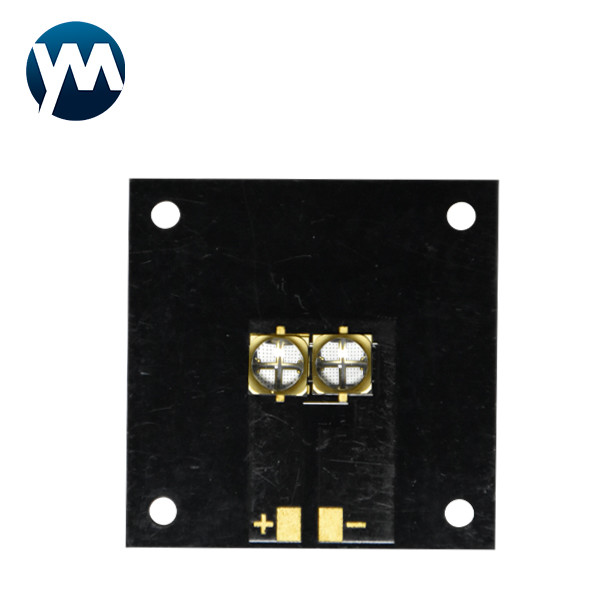

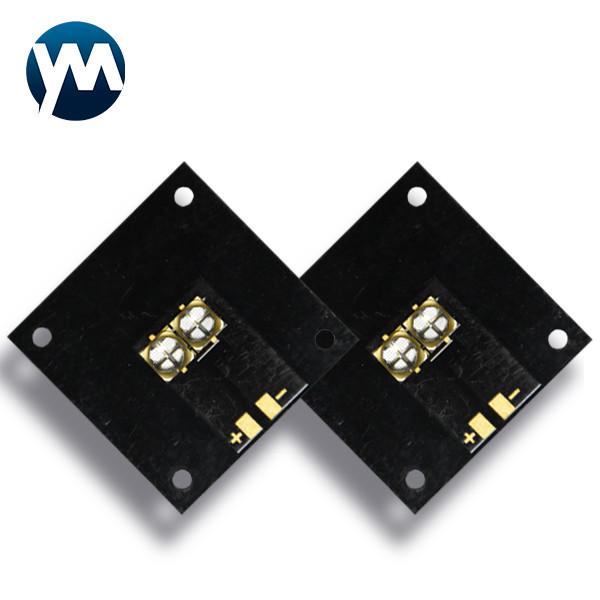

20W UV Light Module Curing Light Quartz Lens Lamp Beads 365nm 385nm 395nm 405nm​

Description of UV Light Module:
The UV Light module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
We can provide you with customized products.
Product Name UV Light Module 4040
Power 20W
Color UV
Number of lamp beads 2 pcs
Diode type 6565-6868 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 60, 90, 120 degree

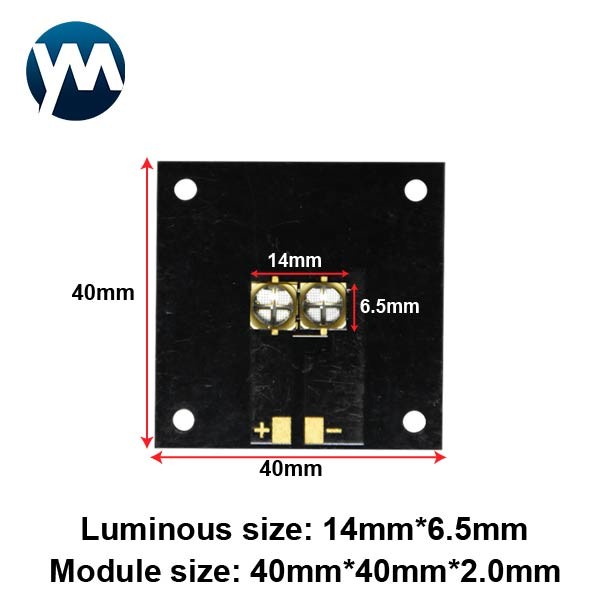

Module size 40mm*40mm*2.0mm
Luminous Size 14mm*6.5mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 13-15V
Current 1-1.5A
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package lamp beads
Module material 2.0mm Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

FAQ

Q1. Are you a factory?
A: Yes! We are a factory in Shenzhen city, and we have professional team of workers, designers and inspector.
Q2. What are your main products?
A: UV LED lamp beads; UV LED module; UV LED single lamp and UV equipment.
Q3. Do you have any MOQ restrictions on LED light orders?
A: Do not! One is also acceptable.
Q4. Can we customize products?
A: Yes! We can produce according to your requirements or technical drawings.
Q5. How about the quality of the leds?
A: Please do not worry about the quality. Our company is the main manufacturer of LEDs in China.
The payment can be T/T transaction/ alibaba payment.
Q6. Could I put my logo on it?
A: Of course. The logo can be made according to your requirements once you reached our MOQ.

Attention should be paid to welding high-power UV LED:
1) The welding time should not exceed 3S;
2) Welding temperature should be less than 260 degrees Celsius.
3) Reflow welding is allowed only once.
Quartz Lens Lamp Beads 20W UV Curing Light 365nm 385nm 395nm 405nmQuartz Lens Lamp Beads 20W UV Curing Light 365nm 385nm 395nm 405nmQuartz Lens Lamp Beads 20W UV Curing Light 365nm 385nm 395nm 405nm

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
