Quartz Lens 300W High Power LED UV Lamp Module 365nm 385nm 395nm For Printer

  • 1
  • 2
  • 3

Brand Name : YM

Model Number : UV Light Module 7556

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Power : 300W

Module Size : 75mm*56mm*2.0mm

Voltage : 65-75V

Current : 3-4.5A

Diode type : 6565/6868 smd

Lens Material of Diode : Silica gel or quartz

Contact Now

300W UV Light Module high power quartz lens led uv lamp for printer 365nm 385nm 395nm 405nm

UV Light Module Product Description
The UV Light Module can be applied with either Water-cooling or wind-cooling method.
Various powers, sizes, and circuits can be customized according to your requirements, including mixed bands.
UV LED lamp beads are consumables, please use them reasonably to make the life longer,
So as not to burn out the lamp beads if the current and voltage are too high.
Apply in various UV printing industries, painting, UV lnk,and UV glue.
Product Name UV Light Module 7556
Power 300W
Color UV
Number of lamp beads 30 pcs
Diode type 6565/6868 smd
Lens Material of Diode Silica gel or quartz
View Angle of the Lens 30, 60, 90, 120 degree

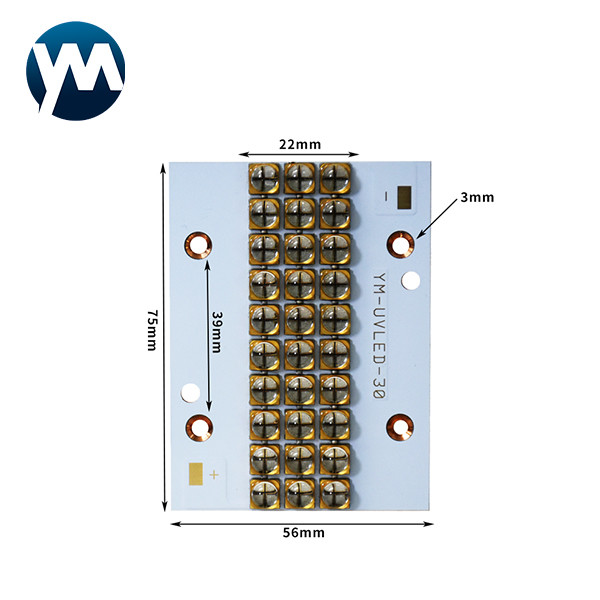

Module size 75mm*56mm*2.0mm
Luminous Size 75mm*22mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 65-75V
Current 3-4.5A
Chip Material LG,Seoul,Epileds
Encapsulation process 2.0 High temperature quartz lens package
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting, UV lnk,and UV glue.
Place of Origin Shenzhen, Guangdong, China


Quartz Lens 300W High Power LED UV Lamp Module 365nm 385nm 395nm For PrinterQuartz Lens 300W High Power LED UV Lamp Module 365nm 385nm 395nm For PrinterQuartz Lens 300W High Power LED UV Lamp Module 365nm 385nm 395nm For Printer
Why Choose Us

1. 24 hours service Professional sales team

2. Free Sample is available

3. Fast delivery

4.100% QC inspection Before Shippment

5. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.

UV LED Module the Ceramics package, it has a high reliability, good heat dissipation, are widely used in the disinfection, curing, printing and other fields, for example, ultraviolet disinfection, uv curing, uv ink curing, printing.

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
